  3. 32-bit High-Speed USB/SD/SATA Encrypted MCU - CH568

32-bit High-Speed USB/SD/SATA Encrypted MCU - CH568

Overview

CH568 is a high-performance MCU with 32-bit reduced instruction sets. The system clock frequency can be up to 120MHz. The chip integrates peripheral sources, such as high-speed USB controller, SATA2.0 controller and severral SDIO controllers. CH568 provides two encryption/decryption algorithms (SM4 and AES), and supports 8 types of encryption/decryption modes. CH568 can be widely used in high-speed transfer, information security and other applications.

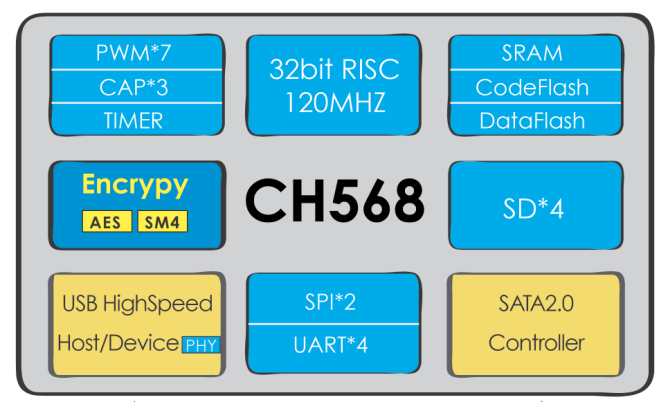

System Block Diagram

Features

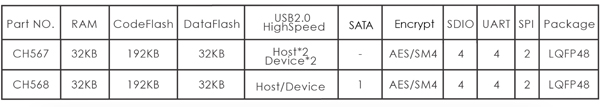

32-bit RISC instruction sets, 120MHz system clock frequency. 192KB CodeFlash, 32KB SRAM, 32KB DATA Flash. SATA host/device controller. USB2.0 high-speed master/slave interface (built-in PHY), support DMA. 4 SDIO interfaces. Support SM4/AES encryption algorithms, 8 types of encryption modes. 4 UARTs, 2 SPIs. Low-power Sleep mode. Support wake up parts of GPIOs, USB, SATA signals. 7-channel PWM. 3 x 26-bit timers. Unique 64-bit ID. Package: LQFP48.

Download Sample Contact Us

relation files

file name file content
CH559DS1.PDF CH559 datasheet. Dual low/full-speed USB host/device +ADC 8-bit E8051 MCU. 64KB Flash-ROM, 6KB on-chip xRAM. Supports USB host and USB device modes. Provides dual port Root-HUB, ADC, 4 timers/PWM, 2 UARTs, 2 SPIs, etc.
CH558DS1.PDF CH558 datasheet, low/full-speed USB device + ADC 8-bit E8051 MCU, 40K program ROM, 4K+256 memory RAM, supports full-speed or low-speed USB devices, provides ADC, 4 groups of timers and PWM, dual serial ports, SPI, etc.
CH557DS1.PDF CH557 datasheet. CH557 has a built-in 4-port USB Root-HUB and supports USB master-slave mode, with built-in 128 groups of RGB LED controllers, E8051 core, 8K RAM, 64K ROM. CH557 provides ADC, 2 serial ports, 2 SPIs, etc.
CH567DS1.PDF CH567 datasheet. CH567 is a 32-bit MCU. The system frequency can be up to 120MHz. It provides built-in 2-channel high-speed USB host/slave controller, 4 sets of SD controllers. It provides 2 encryption algorithms, SM4 and AES, and provides 8 encryption modes. It also provides 4 UARTs, 3 sets of timers, 7 sets of PWMs and other peripherals.
WCHISPTool_Setup.exe MCU burning software of CH54x,CH55x,CH56x,CH643x,CH641x,CH57x,CH58x,CH59x,CH32F10x,CH32F20x,CH32V00x,CH32V10x,CH32V20x,CH32V30x,CH32X03x,CH32L10x
